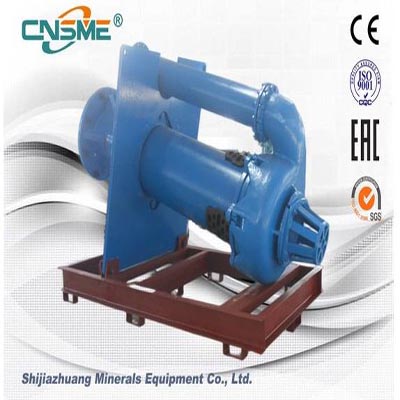

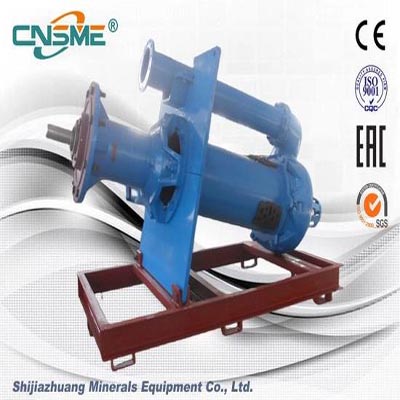

1.Discription of CNSME® SV/250T (250TV-SP) Vertical Sump Pump:

CNSME® SV/250T (250TV-SP) pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type SP pump are made of abrasion-resistant metal. All parts of type SP(R) pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.

2.Vertical slurry pump standard

1. Standard pump into the liquid depth is 1.2 meters , the highest speed is 1150 r/min.

2.When pump into the liquid depth of 0.9 m, the highest speed is 1500 r/min,

3. When pump into the liquid depth of 1.5 m, the highest speed is 1000 r/min,

4. Standard dipping into the liquid depth is 0.9 meters. Allowed the most high power is15 KW

Function

1). A05 materials.

2). CNSME® SV/250T (250TV-SP) type sump pump parts, immersed in liquid rubber lining.

3). Different length of the pump drive shaft or inhaled could be selected

4). V-belt drive, direct drive, and flexible coupling.

5). Bearing to lubricate oils.

6). use of variable-speed, the best condition in the pump operation, long service life, run- effective,meet many bad transportation conditions.

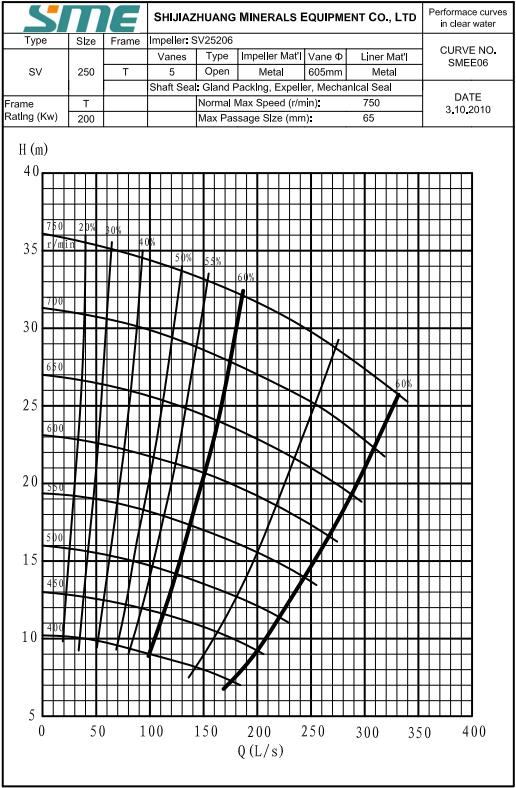

4.Performance Curve of CNSME® SV/250T (250TV-SP) Vertical Sump Pump:
