Pump | Discharge | 152mm |
Suction | 354mm | |
Impeller | Vanes | 5 |
Vane ø | 560mm | |
Type | open | |
Part No | Material | |
SAF6127 | Metal | |
Frame (Rating - KW) | 63mm | |

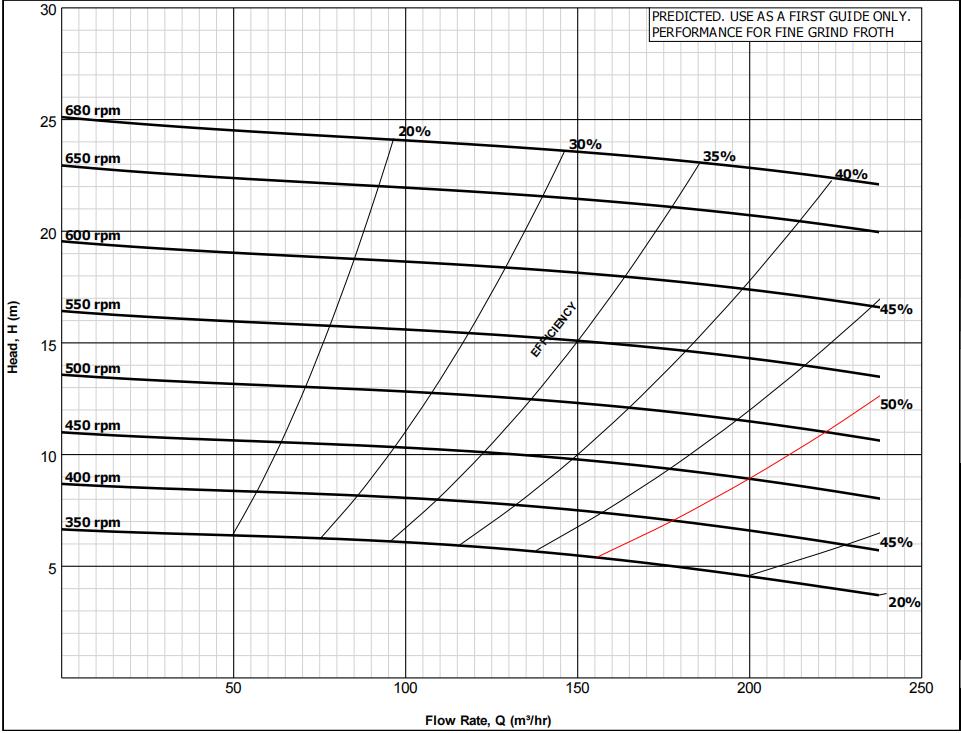

Curve | Revision | 1 |
Revision Notes | VANE DIAMETER WAS 540 | |
Reference | PREDICTED | |
Issued | Aug 98 | |
CURVE SHOWS APPROXIMATE PERFORMANCE FOR CLEAR WATER (International Test Standard ISO9906:1999 - Grade 2 unless otherwise specified). For media other than water, corrections must be made for density, viscosity and/or other effects of solids. WEIR MINERALS reserves the right to change pump performance and/or delete impellers without notice. Frame suitability must be checked for each duty and drive arrangement. Not all frame alternatives are necessarily available from each manufacturing centre.
