Brand: BETTER
Model Number: SGB-450DT
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set

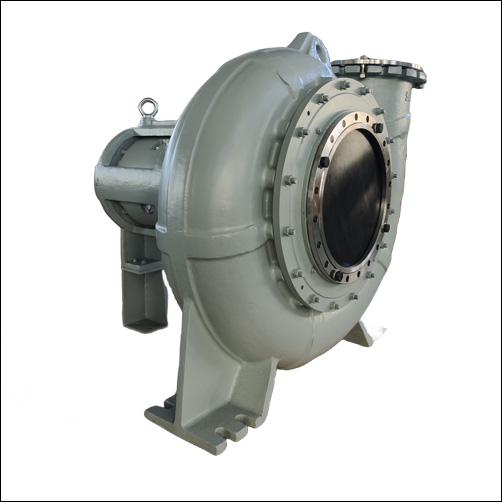

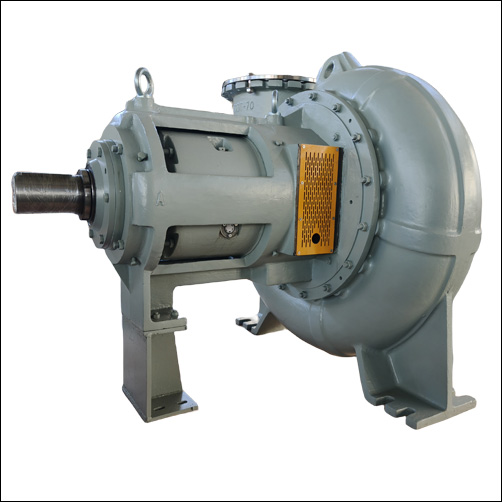

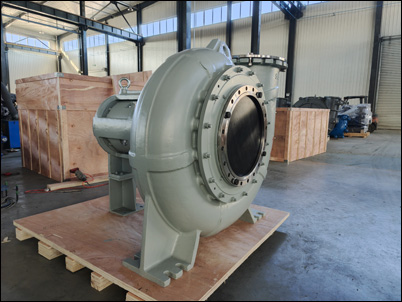

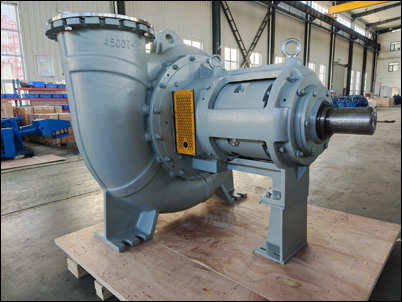

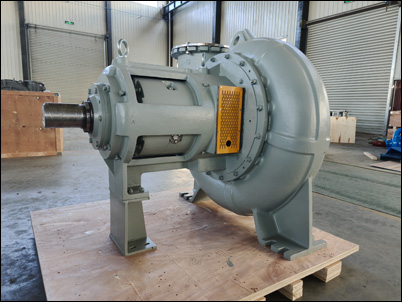

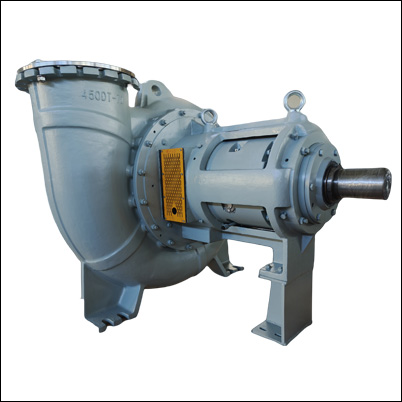

Desulfurization pump is used to transport liquid containing desulfurizer pump, usually used in flue gas
desulfurization.
DT desulfurization pump model compleat:
DT Model | Clean water performance | maximum particle (mm) | Pump weight (kg) | ||||
Q Flow rate (m3/h) | H head (m) | Rotational speed (r/min) | efficiency. (%) | (NPSH)r (m) | |||
1000DT-A130 | 8857-16000 | 14.6-32.0 | 310-440 | 86.1 | 6.0 | 118 | 12400 |
900DT-F110 | 4907-14076 | 8.5-32.7 | 300-490 | 88.3 | 6.5 | 96 | 9480 |
800DT-A105 | 7412-14800 | 16.0-41.5 | 450-595 | 86.7 | 4.0 | 96 | 6680 |
800DT-A100 | 5983-12300 | 12.7-37.2 | 400-595 | 87.7 | 7.8 | 150 | 6660 |
800DT-A93 | 5169-12168 | 9.3-32.2 | 400-595 | 85.6 | 9.1 | 66 | 6650 |
800DT-A90 | 4104-10690 | 7.8-27.8 | 400-595 | 86.4 | 4.3 | 88 | 5940 |
700DT-A93 | 4083-10560 | 9.3-35.0 | 400-595 | 83.2 | 6.1 | 70 | 5660 |
700DT-A90 | 3551-8988 | 10.0-33.8 | 400-595 | 86.7 | 5.6 | 68 | 5400 |
700DT-A83 | 2677-6491 | 8.7-30.2 | 400-595 | 85.9 | 6.0 | 70 | 5900 |
700DT-B78 | 3378-7200 | 10.0-21.8 | 400-595 | 84.7 | 4.3 | 65 | 5040 |
650DT-B80 | 3961-7673 | 15.6-38.3 | 550-740 | 86.3 | 9.6 | 60 | 4120 |
600DT-A82 | 1664-5600 | 5.2-27.8 | 300-595 | 88.3 | 2.2 | 152 | 3960 |
550DT-A75 | 2622-6563 | 11.6-38.2 | 490-740 | 81.5 | 5.7 | 60 | 2680 |
550DT-A70 | 2298-5708 | 8.0-30.1 | 450-740 | 82.2 | 4.5 | 60 | 2666 |
500DT-A76 | 1555-3881 | 9.9-27.9 | 450-595 | 76.8 | 4.5 | 58 | 3512 |
500DT-A75 | 1655-4300 | 12.2-40.1 | 490-740 | 83.8 | 5.3 | 58 | 2502 |
500DT-A70 | 1908-4399 | 9.3-32.5 | 490-742 | 76.0 | 6.0 | 55 | 2900 |
450DT-A70 | 1655-4200 | 10.3-33.3 | 490-740 | 84.2 | 5.5 | 56 | 2550 |
400DT-A65 | 1134-3330 | 8.8-31.1 | 490-742 | 80.1 | 5.2 | 60 | 2340 |
400DT-A55 | 1020-2640 | 5.6-29.8 | 490-980 | 81.7 | 7.1 | 42 | 1675 |
350DT-A78 | 720-2865 | 11.6-51.1 | 400-740 | 78.0 | 3.5 | 104 | 2800 |
350DT-A65 | 750-2480 | 7.3-32.1 | 400-740 | 84.7 | 2.8 | 92 | 2240 |
350DT-A58 | 668-1970 | 5.9-24.3 | 400-740 | 82.5 | 2.8 | 99 | 2250 |
350DT-A52 | 963-2200 | 8.8-30.8 | 590-980 | 82.9 | 3.7 | 50 | 1238 |
350DT-A48 | 638-1800 | 7.0-26.7 | 590-980 | 75.9 | 4.0 | 50 | 1222 |
300DT-A70 | 995-2828 | 27.5-75.0 | 700-993 | 77.6 | 5.3 | 92 | 2470 |
300DT-A60 | 574-2384 | 8.7-52.0 | 490-989 | 81.1 | 4.3 | 96 | 2300 |
300DT-A50 | 440-1750 | 6.1-32.8 | 490-980 | 81.7 | 2.2 | 80 | 1140 |
300DT-A45 | 456-1620 | 4.2-25.0 | 490-980 | 75.5 | 3.4 | 40 | 1100 |
250DT-A75 | 300-1480 | 20.8-97.5 | 490-980 | 77.5 | 3.0 | 72 | 2500 |
250DT-A52 | 333-1220 | 8.1-42.4 | 490-980 | 81.6 | 2.3 | 65 | 1004 |
250DT-A48 | 480-1103 | 6.4-25.6 | 490-980 | 78.5 | 3.7 | 42 | 1030 |
250DT-A45 | 221-804 | 5.0-27.0 | 490-980 | 68.2 | 4.1 | 56 | 1150 |
250DT-B45 | 297-990 | 5.0-27.0 | 490-980 | 76.6 | 3.7 | 64 | 1150 |
200DT-A60 | 237-868 | 19.2-60.2 | 590-980 | 77.0 | 2.7 | 52 | 1500 |
200DT-B45 | 136-639 | 5.5-30.1 | 490-990 | 80.8 | 2.0 | 51 | 755 |
200DT-B40 | 208-648 | 4.0-21.0 | 490-980 | 77.2 | 2.6 | 36 | 720 |
150DT-A60 | 156-704 | 28.9-150.0 | 700-1480 | 70.7 | 2.1 | 39 | 1450 |
150DT-B55 | 139-630 | 11.3-53.7 | 490-990 | 78.1 | 2.3 | 56 | 815 |
150DT-A50 | 62-279 | 9.3-44.6 | 490-980 | 65.7 | 2.1 | 30 | 800 |
150DT-A40 | 122-503 | 11.2-61.2 | 700-1490 | 73.1 | 2.6 | 40 | 550 |
150DT-A30 | 115-330 | 10.9-31.4 | 950-1480 | 76.7 | 2.1 | 30 | 326 |
150DT-A27 | 117-299 | 8.2-24.0 | 950-1480 | 75.4 | 2.0 | 16 | 320 |
100DT-A60 | 71-305 | 29.1-147.0 | 700-1480 | 57.9 | 2.4 | 18 | 960 |
100DT-A50 | 85-360 | 20.5-100.2 | 700-1480 | 69.6 | 2.5 | 34 | 880 |
100DT-A45 | 47-228 | 14.8-83.5 | 700-1480 | 58.7 | 2.2 | 22 | 550 |
100DT-B40 | 61-268 | 12.0-61.0 | 700-1480 | 70.4 | 1.7 | 29 | 530 |
100DT-A35 | 77-323 | 8.8-45.9 | 700-1480 | 73.2 | 1.9 | 42 | 520 |
100DT-A30 | 77-281 | 5.5-29.8 | 700-1480 | 66.8 | 2.5 | 45 | 515 |
80DT-A36 | 41-167 | 8.9-47.1 | 700-1480 | 62.4 | 1.5 | 16 | 420 |
65DT-A40 | 34-159 | 11.5-60.1 | 700-1480 | 62.1 | 2.1 | 16 | 476 |
65DT-A30 | 21-99 | 7.0-35.6 | 700-1470 | 54.6 | 2.2 | 19 | 250 |
50DT-A50 | 27-111 | 22.3-110.7 | 700-1480 | 45.1 | 3.0 | 13 | 700 |
50DT-A45 | 21.6-93.6 | 15.2-81.0 | 700-1480 | 48.4 | 3.6 | 9.5 | 544 |
50DT-B40 | 24.5-99.5 | 12.0-60.7 | 700-1470 | 55.0 | 3.1 | 14 | 406 |
50DT-A30 | 16.0-78.0 | 5.8-35.1 | 700-1460 | 48.5 | 0.8 | 16 | 210 |
50DT-A30B | 11.0-70.0 | 6.2-36.0 | 700-1460 | 51.2 | 2.0 | 16 | 200 |
40DT-A40B | 12.0-39.0 | 11.0-64.3 | 700-1470 | 34.9 | 3.3 | 10 | 270 |
40DT-B35 | 13.8-55.0 | 7.3-45.5 | 700-1480 | 34.7 | 2.2 | 6 | 220 |
40DT-B35B | 10.0-40.0 | 13.0-46.6 | 700-1460 | 41.2 | 2.8 | 8 | 220 |
40DT-A30 | 10.4-32.5 | 9.5-34.0 | 700-1470 | 37.5 | 3.0 | 8 | 230 |
40DT-B30B | 9.3-35.3 | 6.1-35.3 | 700-1470 | 41.0 | 1.8 | 12 | 220 |
40DT-A25 | 11.5-36.5 | 6.4-21.1 | 960-1440 | 42.5 | 1.5 | 9 | 175 |
40DT-B20 | 7.9-37.1 | 10.7-57.5 | 1400-2930 | 53.0 | 0.9 | 7 | 85 |
40DT-A19 | 7.8-34.9 | 12.3-57.1 | 1400-2930 | 58.8 | 1.2 | 11 | 90 |
40DT-A17 | 4.6-23.4 | 9.2-44.6 | 1400-2900 | 52.4 | 2.5 | 11 | 85 |
25DT-A25 | 4.7-19.9 | 3.3-21.6 | 700-1440 | 38.0 | 3.3 | 5 | 70 |
25DT-A15 | 3.8-16.0 | 5.4-33.5 | 1390-2900 | 40.1 | 1.3 | 8 | 67 |
 |  |
|  |
CNSME® is a registered trademark. CNSME® Pumps do not represent a registered trademark of Weir Warman and are not affiliated with Warman® in any way. All names, numbers, symbols and descriptions are for informational purposes only and do not mean that any part or pump listed is a product of Weir pumps.
